PCBA cleaning machine maintenance belongs on a schedule driven by operating hours and bath load, not on a fixed monthly calendar. Three interval tiers, each with its own change signal, keep a water-based washer from failing quietly between services.
A calendar-based maintenance sheet is why water-based PCBA washers fail quietly. Print a sheet, tick the boxes, change the filters on the first of the month — and a line running two shifts loads its nozzles, filters and bath far faster than one running half a shift, while both get the same checklist.
The fix is to express maintenance intervals in the units the machine actually consumes. The tiers below are built from the consumption figures published on the CQ-C9610 and CQ-C743 product specification pages, and every reference value in the tables is copied from those same datasheets rather than estimated.
Key takeaways
- Maintenance belongs to operating hours and bath load, not to the calendar.
- CQ-C9610 draws 1.0–2.5 L/H detergent and 10–16 L/min DI water during a run.
- Both filtration stages on CQ-C743 are rated at 0.45 μm.
- Three faults that look like maintenance problems are actually process problems.
What Has to Be Maintained on a PCBA Washer, and How Often
The scope of this plan is a water-based PCBA washer with a wash, rinse and dry sequence — the class that covers CQ-C9610 inline units and CQ-C743 batch units. The intervals below are expressed in operating hours and in bath equivalents rather than in days, because that is the unit the machine actually consumes.
A PCBA washer has five maintenance surfaces. Each one wears at a rate set by what flows past it:
- Spray nozzles. Loaded by flux solids and by hard-water scale. Declog by pressure reading, not by sight.
- Filtration stages. Loaded by the mass of residue the line removes per shift.
- Bath chemistry. Depleted by drag-out on the boards and by evaporation.

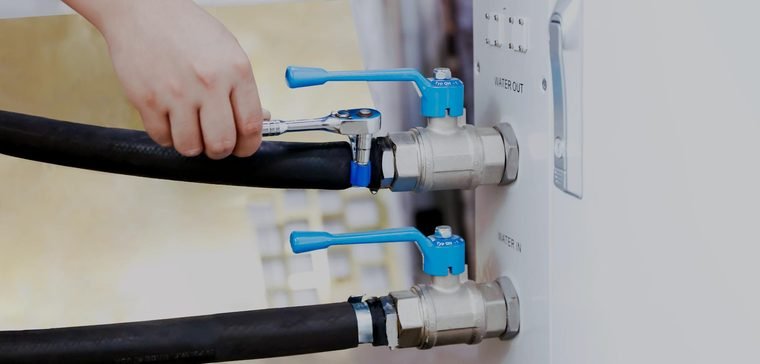

- Deionized (DI) water train. Loaded by the ionic content the rinse stage has to carry away.
- Conveyor and belt. Loaded by throughput and by the weight of the assemblies.
The single biggest source of error is treating them as one schedule. They do not wear at the same rate, and collapsing them into one monthly pass means two of them are always overdue and three are always replaced early.
Tier 1 — Per shift, by reading not by calendar
Tier 1 is a glance at three instruments. Check spray pressure against the commissioning baseline; a drop of more than about one bar at the same pump setting points to a partially blocked nozzle set rather than a worn pump. Check the bath level and top it up. Check that the DI-water resistivity meter still reads above the machine’s rated floor — a falling reading is the earliest signal that the rinse train is loading up.
Tier 2 — Per bath equivalent, by mass balance
Tier 2 is triggered by how much work the bath has done, measured either in operating hours or in square metres of board cleaned. On a conveyor platform such as the inline PCBA water cleaning machine, this is the tier that keeps spray pressure and filtration inside the band the machine was commissioned to hold. This is where filters, bath change and nozzle cleaning belong. The correct trigger is a mass balance: the detergent and DI-water consumption rates in the product specification tell you how fast residue is arriving at the filtration stages.
Tier 3 — Per campaign, by configuration
Tier 3 is the annual or campaign-level pass: conveyor belt tension and tracking, pump seals, drying-element performance, and a full nozzle-set flow test against the baseline recorded at commissioning. Your own factory acceptance test data is the right reference here — a machine that passed a spray-pressure calibration and a drying-temperature uniformity test at build should be re-measured against those same numbers, not against a generic table.
Basis: the cadence is built from the consumption numbers printed on each machine datasheet. Read it as a planning default, not as a committed service schedule.
What a Missed Interval Costs: Downtime, Rejects and Bath Life
A maintenance plan is only persuasive when it is priced. The honest way to price it is in three lines: unplanned downtime, scrap from a degraded rinse, and shortened bath life.
| Cost line | What drives it | Where the signal shows up first |
|---|---|---|
| Unplanned downtime | Nozzle blockage reaching a fault state | Falling spray pressure at constant pump setting |
| Scrap and rework | Rinse water carry-over of ionic residue | Falling DI-water resistivity reading |
| Bath life cut short | Residue loading past the filtration capacity | Rising turbidity, faster detergent consumption |
The interesting number is the third one. Bath life is not set by the detergent; it is set by how well the filtration stages keep solids out of solution. CQ-C743 carries both a chemical-recovery filtration stage and a DI-drain filtration stage, each rated at 0.45 μm. That rating is the working definition of “clean enough to return” for this class of machine, and it is the number to compare against when a filter element is pulled for inspection.
Practical translation: a maintenance plan that protects the filtration stages protects the detergent bill, and the detergent bill is the one line that repeats every shift.
Basis: filtration ratings and consumption figures are from the CQ-C743 and CQ-C9610 specification tables. Cost categories are described qualitatively; no per-unit currency figures are given because they vary by region and contract.
Three Failures That Are Not Maintenance Problems
This is the boundary that saves the most engineering time. Not every symptom on a washer is a maintenance job, and three of the most common ones are misdiagnosed.
- White spotting on the board after drying. This is usually a rinse-quality or drying-uniformity issue, not a clogged nozzle. If pressure reads normal, stop changing nozzles and look at the rinse stage.
- Residue under low-clearance components. Standoff geometry shadows the spray; a maintenance pass will not open that shadow. It is a fixture and orientation question.
- Boards that come out clean but fail a downstream cleanliness check. The wash may be fine and the rinse or dry stage may be the source. A maintenance checklist that only inspects the wash tank will never see this.
Not suitable for: this three-tier plan assumes a water-based machine with a defined wash–rinse–dry sequence. It does not transfer to solvent machines without solvent-specific consumable ratings, and it does not replace the manufacturer’s safety instructions for electrical and thermal work. If your line runs dry-ice blasting, the cleaning media and the wear points are entirely different.
When a symptom survives the maintenance pass, the next step is diagnosis by stage, and that is a separate exercise from upkeep.
Consumables List and Change Signals for a Water-Based Washer
Below is the working consumables list for this class of machine, with the signal that says “change it” rather than a guessed interval.
| Consumable | Change signal | Reference value |
|---|---|---|
| Nozzle set | Spray pressure down ~1 bar at same pump setting | Baseline from commissioning |
| Chemical-recovery filter | Differential pressure rise or visible carry-over | 0.45 μm rated (CQ-C743) |
| DI-drain filter | Residue breakthrough into the rinse loop | 0.45 μm rated (CQ-C743) |
| DI-water train / resin | Resistivity trending toward rated floor | >15 MΩ rated (CQ-C743) |
| Conveyor belt | Tracking drift or tension loss | SUS316 mesh belt (CQ-C9610) |
| Detergent top-up | Consumption drift above rated band | 1.0–2.5 L/H rated (CQ-C9610) |
The bottom row is the one to watch. Detergent consumption is a proxy for how much residue the line is producing, and a drift above the rated band is often the first sign that an upstream process — not the washer — has changed.
Basis: the figures in the last column are copied straight off the CQ-C743 and CQ-C9610 datasheets. The change signals beside them reflect shop-floor practice and still need calibrating to your own readings.
FAQ
How often should I change the filters on a PCBA cleaner?
Change them on differential pressure or on visible carry-over, not on a fixed date. The 0.45 μm rating defines what the element is expected to stop; the loading rate is set by your throughput and soil level, so the interval has to be measured on your line.
Why did my spray pressure drop even though the pump is fine?
The usual cause is a partially blocked nozzle set or a clogged filter upstream of the manifold, not pump wear. Confirm by reading pressure at the manifold and inspecting a sample of nozzles before replacing pump parts.
Can I run a DI-water rinse stage on a maintenance schedule alone?
No. Rinse quality tracks the DI-water train condition, which is a chemical parameter, not a mechanical one. Watch resistivity against the rated floor and treat a downward trend as the trigger.
What spare parts should I stock for a conveyor washer?
Nozzle sets, both filtration elements, pump seals and belt-tracking components cover the majority of unplanned stops. The machine specification sheet lists the consumable ratings you need to match when ordering.
